Product description

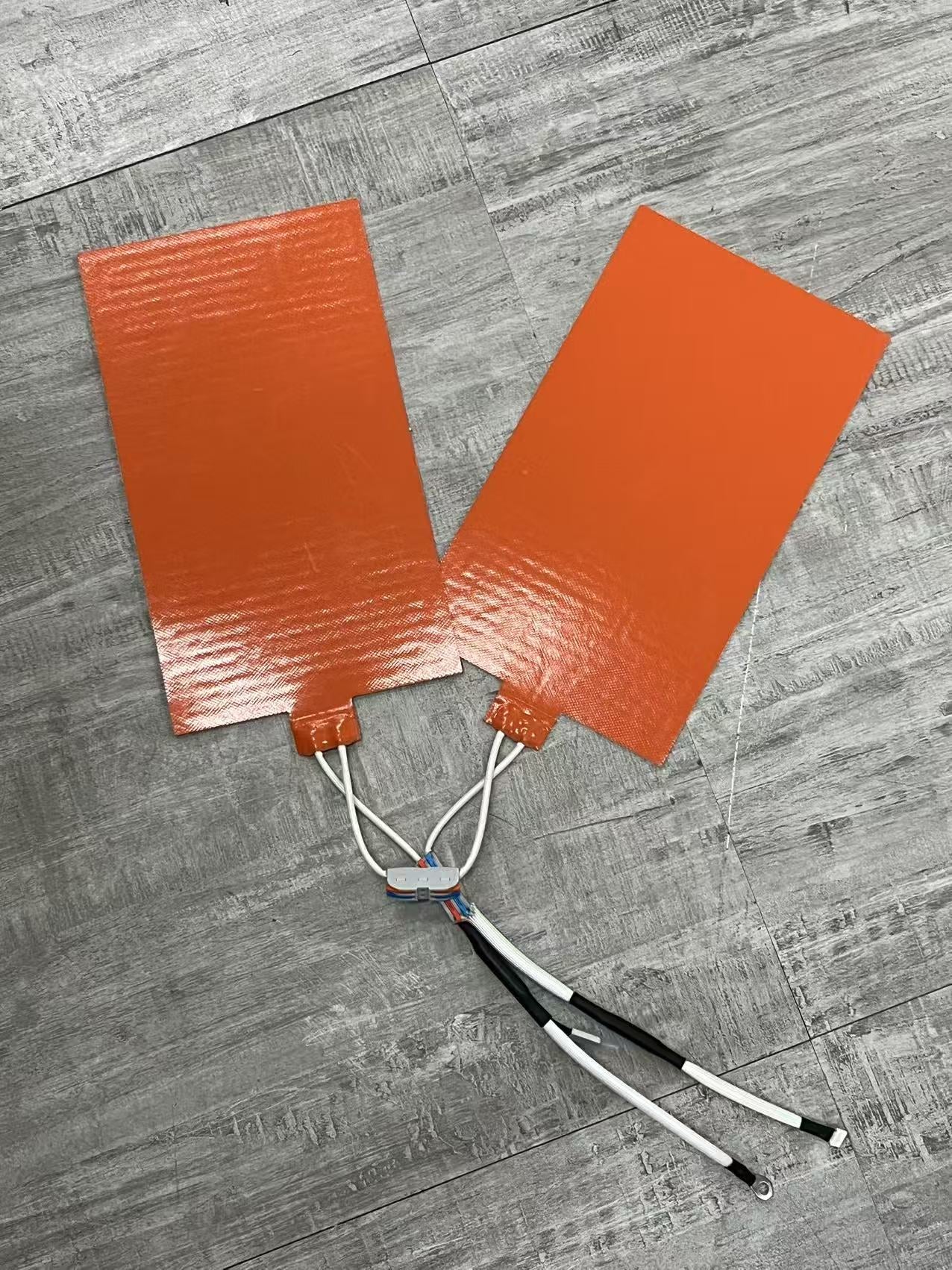

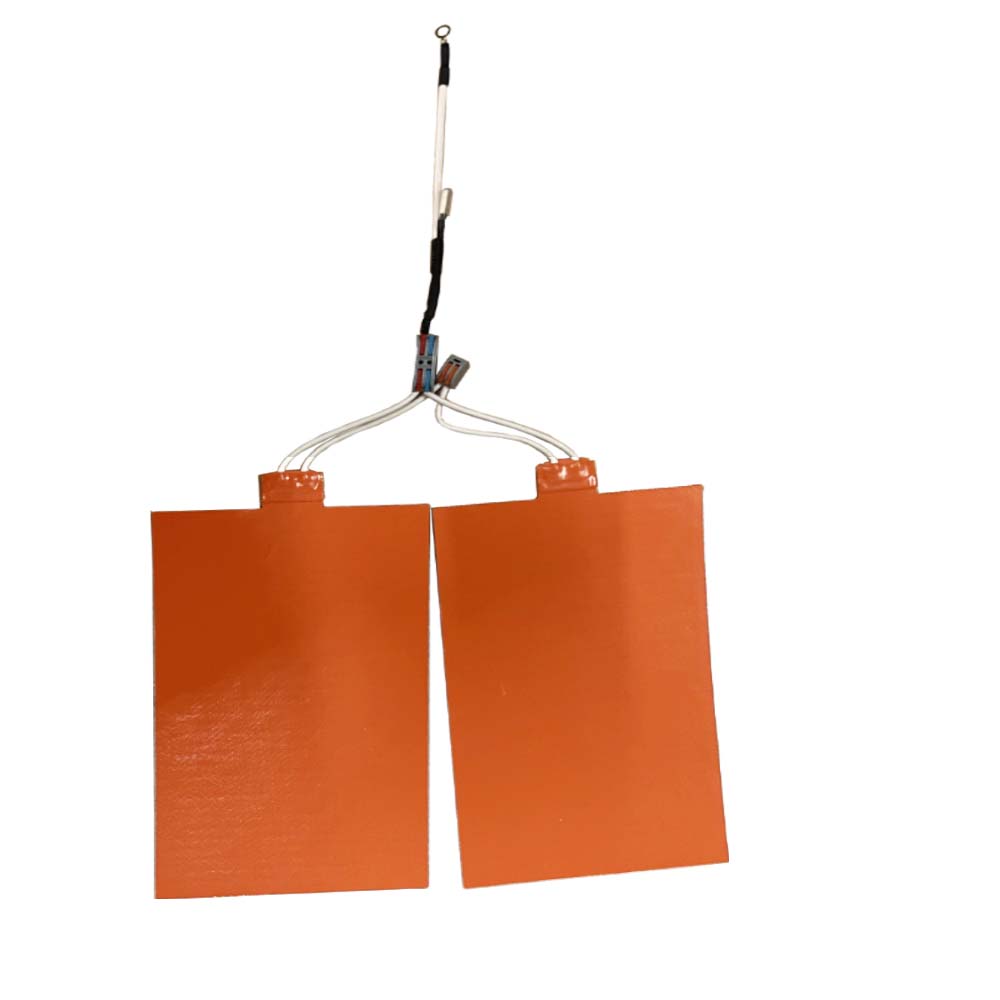

With a heating mat for EEL battery boxes, you can ensure that the battery box always maintains a cell temperature at which the battery functions properly, even if the ambient temperature is lower.

Please order this accessory with the corresponding EEL battery boxes if required.

There are different connectors for the JK-BMS. Please specify when ordering if you need a connector for older versions than the current V19 JK-BMS.

Technical data:

Specification

• Total nominal voltage: 102.4 VAC
• Total rated power: 371.2
• Rated current 3.625 A
• Total resistance 28.25 Ω ± 5 % (26.84–29.7 Ω)
• Power density: 0.2 W/cm²
• Rated voltage of the single-chip heating mat: 12.8 V/51.2 V
• Rated power of the single-chip: 185.6 W, Rated resistance: R14.12 ± 5 % Ω (13.41–14.83 Ω)

The main cross-section of the diaphragm is divided into: silicone skin (0.75 mm), heating wire, silicone skin (0.75 mm), Tesa 60977 double-sided adhesive tape, total thickness: 1.6 ± 0.2 mm

Operating temperature range of the heating film: (within 2 hours) -40 °C to 150 °C (the highest heating temperature is 180 °C);

Wire specification: UL3135 AWG18# Red silicone wire, high-temperature resistant conductor,

white fiberglass sleeve with suitable wire thickness

Dielectric strength: AC1800V, DC2500V, ≤10mA, 1min, no flickering

Breakdown

Insulation performance: >100 MΩ, @DC 1000V

Flame retardant properties: complies with UL 94 V-0 standard (heating film body)

All materials comply with RoHS requirements

Suitable for JK xxx BMS

By default, the heating mat is shipped with an adapter for the JK-BMS V19. If you need the heating mat for the previous version of the JK-BMS V15, please let us know. A different adapter cable will then be sent accordingly.

Packing list:

1x heating mat,

1x JK inverter BMS adapter cable for JK-BMS V19

Delivery time:

• Delivery is currently from a warehouse in China by air freight.
• Delivery time is 10-14 days.
• We also have a small number in our German warehouse with a delivery time of 2-3 days. Please inquire about availability if a short delivery time is important to you.

Note

The assembly of the battery box and installation of the battery cells from the supplied individual components may only be carried out by persons with appropriate expertise, skills and qualifications. The responsibility for the proper installation and operation of the overall product lies with the subsequent owner.

Info 0% VAT

This offer is available in two variants, one with 0% VAT and one with 19% VAT. According to the new legal regulation effective from January 1, 2023, purchasing with 0% VAT is subject to certain conditions. These depend, among other things, on the intended use.

Please pay particular attention to the requirement of whether this item is to be used near a residence, e.g., for a balcony solar system. In this case, the 0% VAT rate may apply.
For example, use in mobile areas away from residential proximity, e.g., for camping, is not subsidized. In this case, you must purchase the item with 19% VAT.

Please note the relevant conditions described at the end of the item description and in detail in our General Terms and Conditions in § 6 "Purchase of solar products with 0% VAT". By purchasing, you legally declare that you meet these conditions.

Conditions for 0% VAT

It has been legally decided that from January 1, 2023, a VAT rate of 0% will apply to the purchase of solar systems, associated components, and delivery and installation services, provided certain conditions are met.

The new legal regulation is implemented in Article 9 of the JStG 2022 and by amending § 12 UStG and adding the new paragraph 3.

By purchasing this offer, at a VAT rate of 0% for photovoltaic products or associated components, you confirm the following points, which are mandatory conditions:

• You are buying as a private person

• You are the operator of the photovoltaic system yourself

• The ordered products will be part of a photovoltaic system with a total installed capacity of no more than 30 kWp according to the market master data register (MaStR)

• The photovoltaic system will be installed near private residences, apartments, as well as public and other buildings used for public welfare activities

The confirmation is made in accordance with §6 of the General Terms and Conditions "Purchase of solar products with 0% VAT rate", which you must agree to upon purchase and conclusion of the contract.

If not all conditions are met as required and you still wish to purchase the item, 19% VAT must be charged additionally according to the law. In this case, please contact us before completing the purchase.

Should it turn out during a subsequent audit that the required conditions were not met and the tax office demands additional tax, Innomate is entitled to claim damages from the buyer retrospectively.
