Product Description

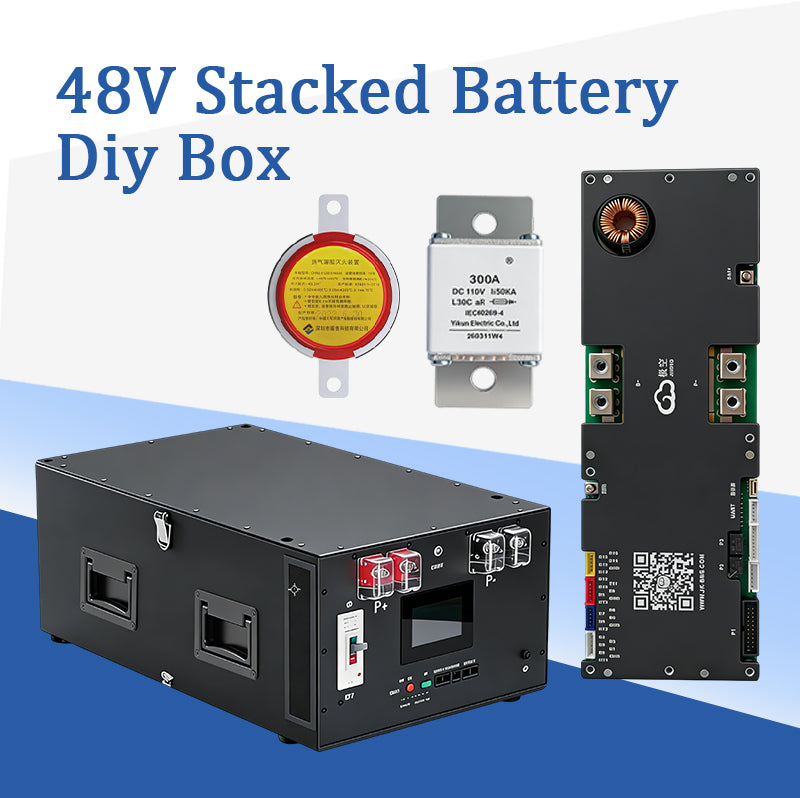

With this DIY battery box set from Yixiang, a 48V energy storage solution can be built relatively easily.

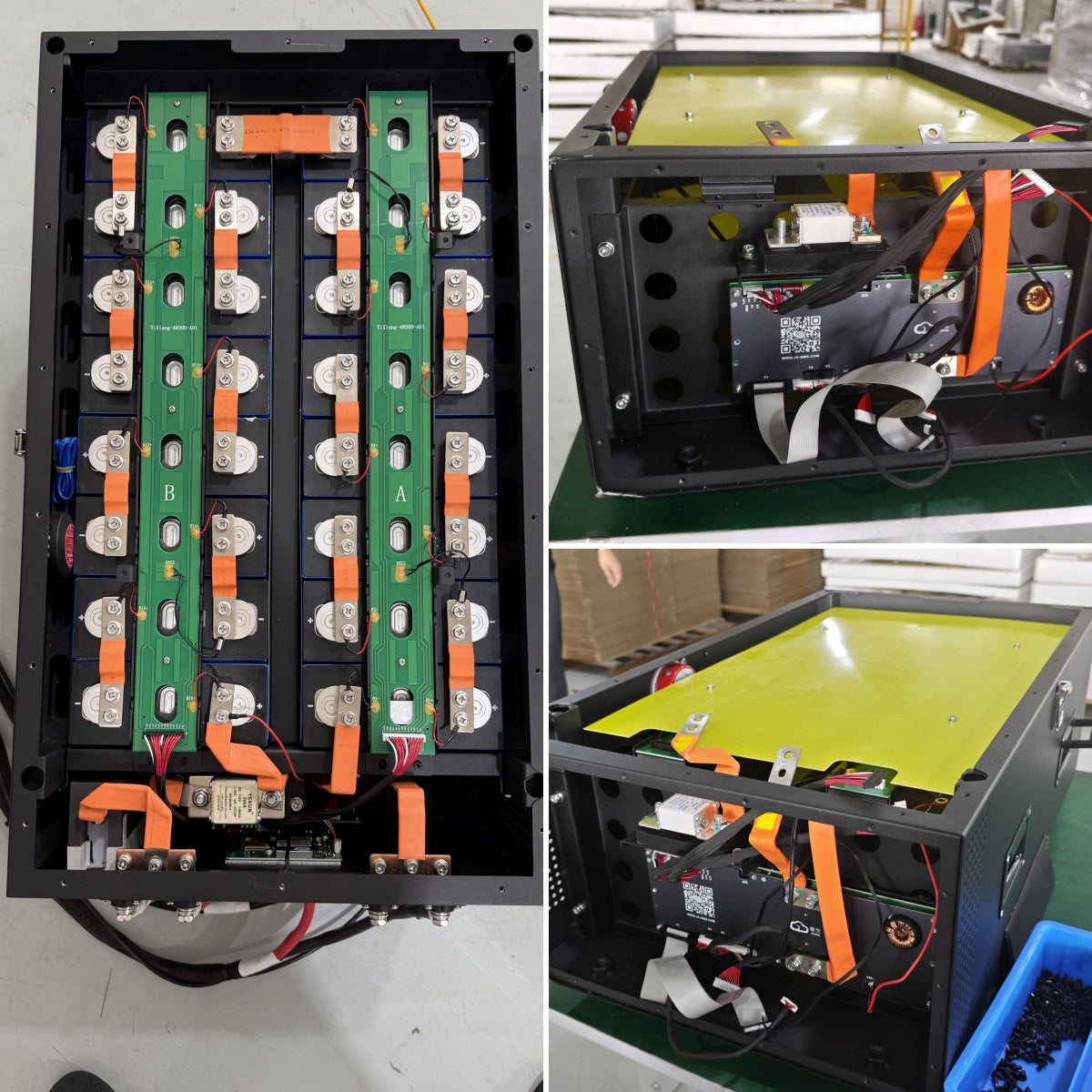

The main components are a robust housing, into which battery cells such as EVE LF280K or MB31 are installed, a highly stable JK BMS with 200A, and a 4.3-inch HD touch screen.

The JK BMS 200A guarantees constant current output and precise cell balancing control. It can be operated intuitively via the 4.3-inch HD touchscreen, allowing for real-time data display and parameter settings.

Further components include:

• An integrated bidirectional protection switch for double safety protection, effectively preventing overcurrent and short-circuit risks.

• Integrated automatic aerosol fire extinguishing module, active fire fighting, significantly increases battery safety.

• Optimized heat dissipation structure with insect-proof grille, efficient heat dissipation, prevents failures due to overheating.

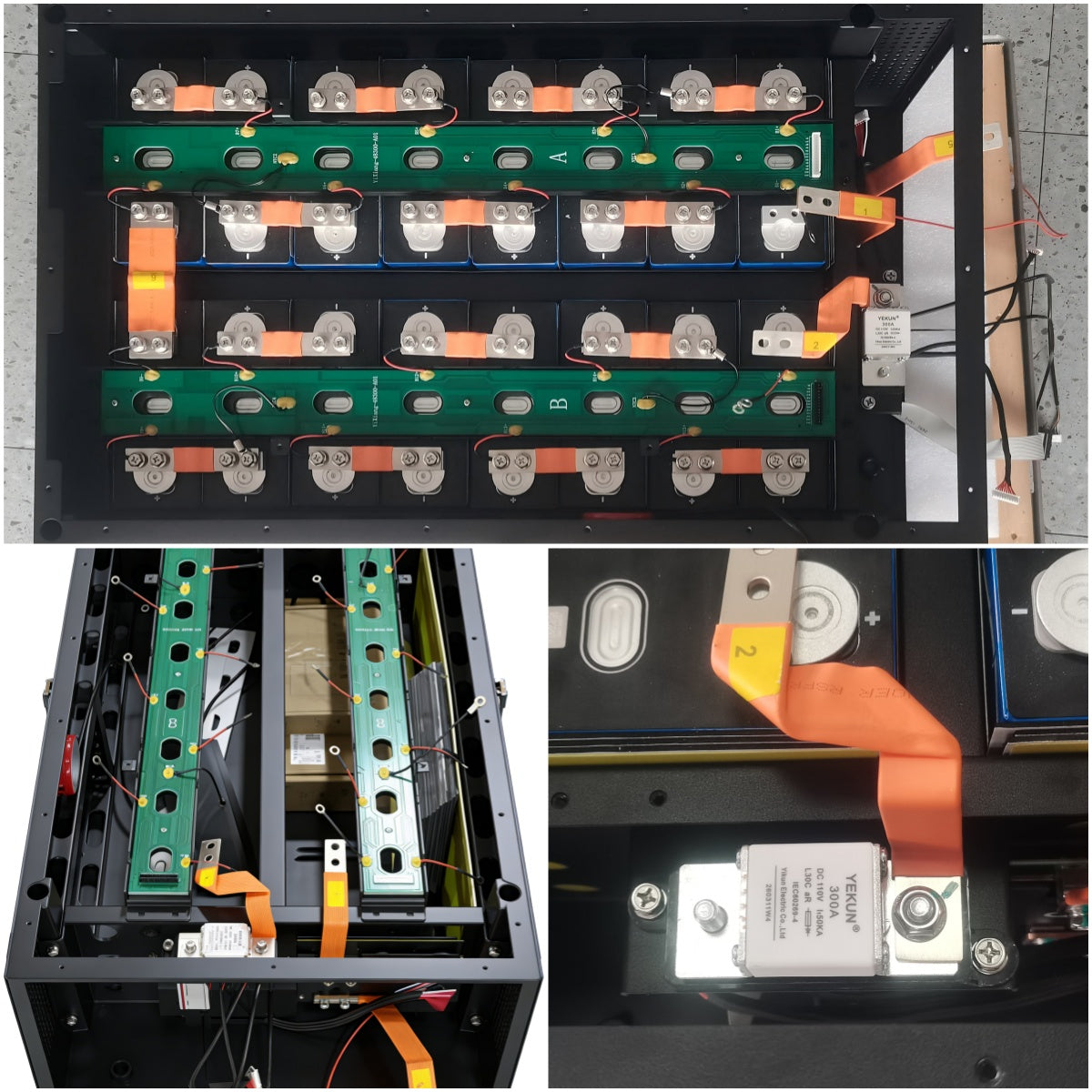

• Use of flexible busbars to connect cells and BMS, reducing resistance and ensuring stable power transmission.

• Equipped with an improved fuse.

• Ergonomic, comfortable carrying handle for easy movement and transport.

• 4-5 battery boxes can be stacked on top of each other, allowing up to 16 battery packs to be connected in parallel and the capacity to be flexibly expanded.


• Optional expansion possibilities:
  - Base with transport wheels
  - Heating mats to enable use outdoors and in cold regions.

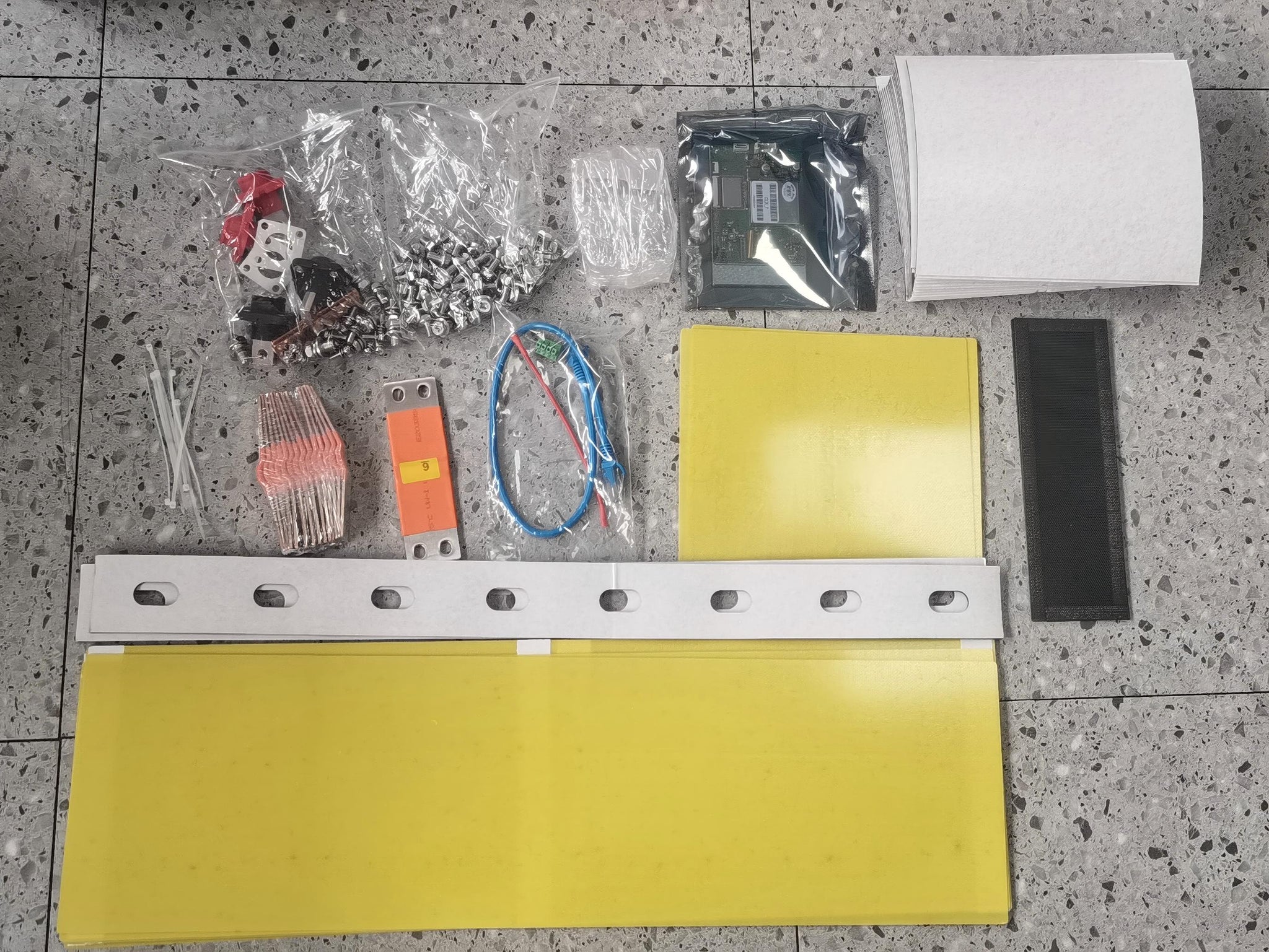

List of Individual Parts

• 14x Flexible busbars for dual terminals to connect the cells
• 1x Flexible bus for connecting the BMS, fuse, terminal, to the cells
• 1x 200A circuit breaker
• 1x 300A fuse
• 1x JK BMS PB2A16S20P with 4.3 inch screen
• 1x Fire extinguishing component
• 4x Positive/negative connectors/terminals
• 64x M6*10 screws
• 4x Square epoxy boards for insulation to the housing
• 14 EV foam plates for between the cells

• 6x Long insulating plates for the sides and bottom of the cells
• 2x PCB board (A and B)
• 2x Protective grilles for side openings

Videos

Official product video from the manufacturer Yixiang:

Practical review by Andy Offgridgarage:

Technical Data:

V6-JK-Box Specification

• Battery type: For 280/320 Ah cells with dual terminal (208 x 174 x 72 mm)
  e.g., EVE LF280K, MB31, LF334
• BMS: 48 V 16S JK-PB2A16S20P
• Rated voltage: 51.2 V
• Current: 200 A

Physical Characteristics

• Dimensions: 770 x 440 x 270 mm
• Weight: 28.5 kg
• Battery pack type: Stackable

Communication

• Bluetooth-BMS: Display and settings via APP and Bluetooth connection
• Communication: CANBUS and RS485 (both accepted)

Delivery

• Immediately available. Delivery time 5-7 days.

Support / After-sales assistance

• For questions or difficulties, please contact Innomate. We will establish contact with Yixiang support if necessary and ensure that a good solution is found. The experiences have been very positive.

Note

The assembly of the battery box and installation of the battery cells from the supplied individual components may only be carried out by persons with appropriate specialist knowledge, skills, and qualifications. The responsibility for the proper installation and operation of the overall product lies with the subsequent owner.
